Racework Flex Fuel Sensor Kit

This kit is a great alternative to running a big HP fuel system through a flex fuel sensor.

save money when buying the full kit!!

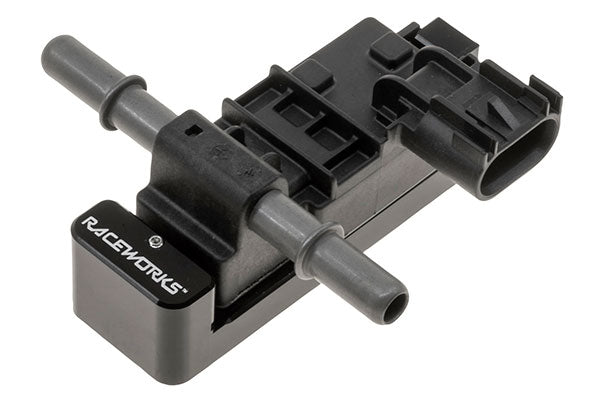

Flex Fuel Sensor

Specifications

Suits 3/8 Quick Connect Adapters. Includes Plug & Pins
Ethanol Content & Fuel Temperature sensor.

Part Number

FSA-023

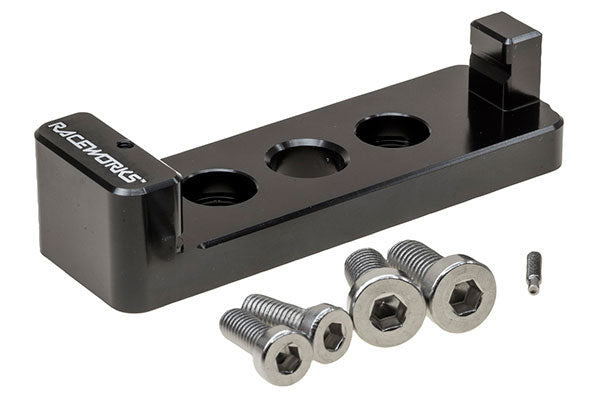

Flex Fuel Sensore Mounting Braket

Specifications

Billet Bracket Suits FSA-023P

art Number

ALY-151BK

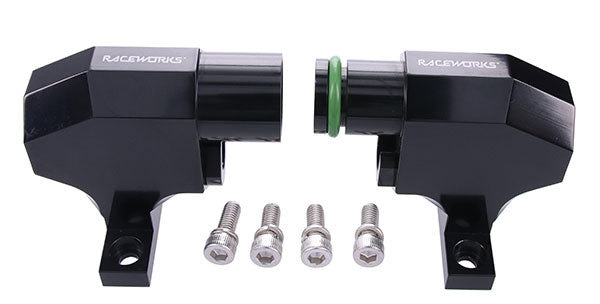

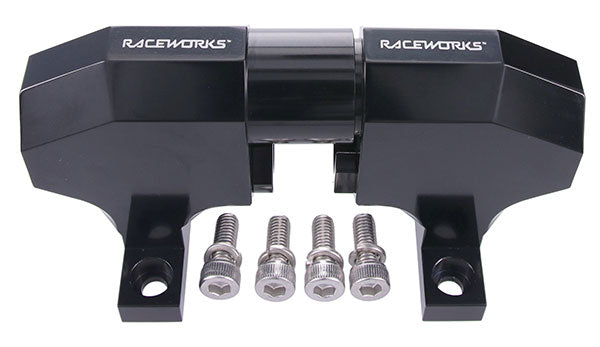

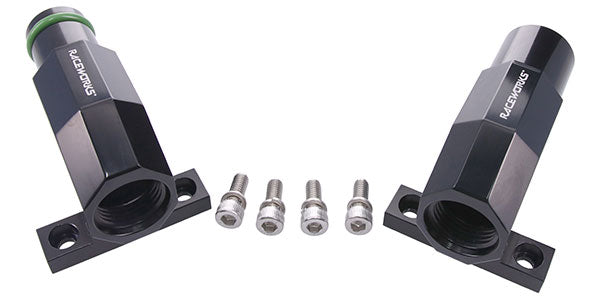

Billet Bypass

Specifications

AN-10 ORB. Facilitates the use of a flex sensor in a high hp application, removing the restriction in the fuel line.
Allows fuel to flow through the sensor, and through a bypass
Results in total flow equivalent to a AN-10 200 Series hose
Comes with mounting bolts, and self adhesive foam tape. The foam tape is used to absorb any variances in the port height moulded in the plastic body Continental sensor.

Part Number

ALY-052BK
