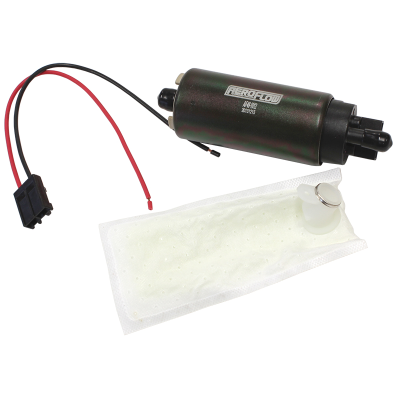

Aeroflow Hi-Flow In-Tank Pump

255lph

Universal 255LPH Efi In-Tank Fuel Pump.

The Aeroflow Performance 255lph fuel pump is a universal style pump intended to be installed in the fuel tank only. It is designed to replace the factory fuel pump in order to maximise fuel flow in high boost applications where the injector pulse duration is substantially increased or where larger injectors are being utilized to service performance upgrades that demand more fuel than what the factory fuel pump can deliver. It flows more than 255lph (67GPH) at 40psi and is ideal for up to 500hp. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the OE configuration. This pump will plug in to the factory OE electrical connector and use the OE screen filter. A new screen filter is included.

-Designed for in-tank use only

-Compatible with Unleaded, E85 and Methanol Fuels (fuel pump life will be reduced when using Alcohol fuels and servicing must be increased).

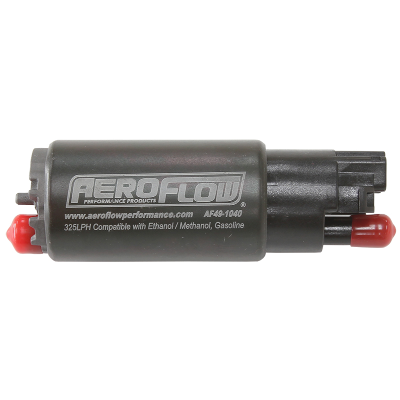

325lph

outlet barb is 9.25mm or 3/8"

What sets the 325lph Pump apart is its superior flow throughout a wide pressure range. Compared to other aftermarket pumps, the 325 boasts a significant increase in performance, flowing more than 325 lph at 40 psi. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.)configuration. The 325 is also perfect for use as a replacement fuel pump for applications that require more flow to support forced air power adders such as turbo and superchargers.

• Compact 65mm body for OE fitment
• Fits a wide range of vehicles where popular aftermarket pumps are applicable
• Flows 325lph @ 40 psi
• Internal check valve
• Quiet, durable and reliable turbine impeller
• Designed for in-tank use only
• Can be used with carbureted or EFI applications
• Can be used in pulse modulated applications.
• Compatible with Unleaded, E85 and Methanol Fuels

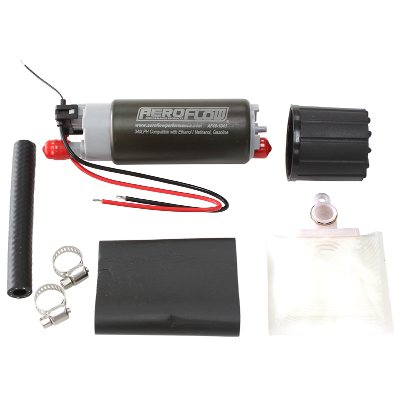

340lph

The 340lph electric fuel pump is perfect for use as a replacement fuel pump for applications that require more flow to support forced air power adders such as turbo and superchargers.

• Compact 130mm body for universal fitment
• Flows 340lph @ 43 psi
• Internal check valve
• Quiet, durable and reliable turbine impeller
• Includes universal filter sock & wiring pigtail
• Designed for in-tank use only
• Can be used with carburettor or EFI applications
• Can be used in pulse modulated applications.
• Compatible with Unleaded, E85 and Methanol Fuels

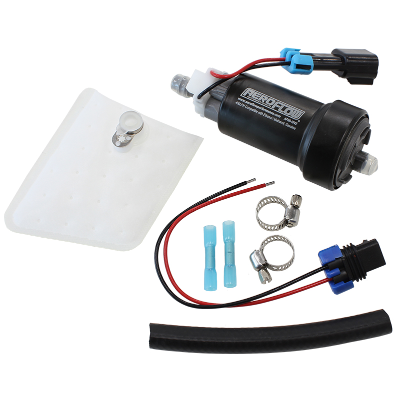

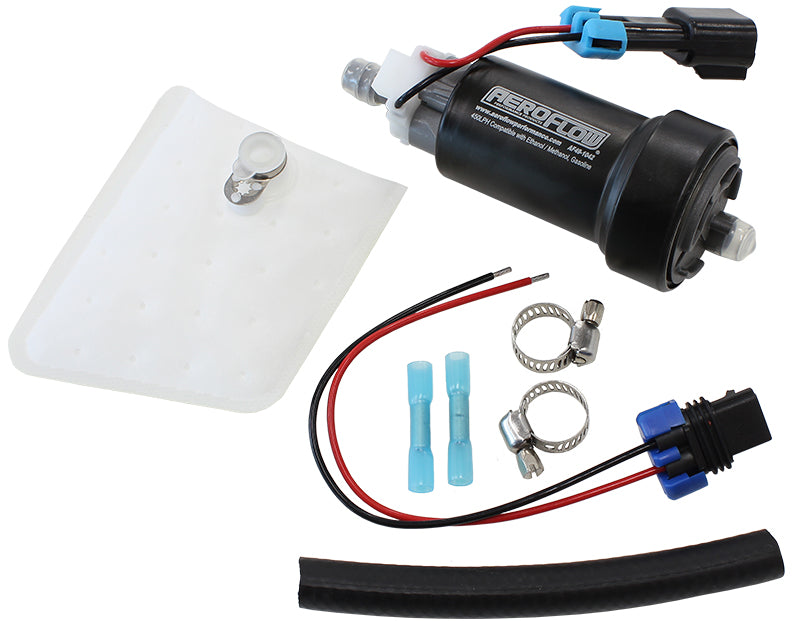

450lph

Introducing the new Aeroflow Performance 450 LPH Hi-flow in-tank efi fuel pump. This fuel pump is one of the highest flowing in-tank fuel pumps available on the market today. For such a compact and small design this fuel pump is capable of flowing 113.6 GPH (450 LPH) @ 29 Psi. With such a small and compact design it will fit in most O.E.M modern fuel tanks and surge tanks. (Please note that this is an aftermarket fuel pump, and some modifications may be required to get it to fit).

The internal design of this fuel pump is extremely quiet in operation compared to the older style fuel pumps. It is compatible with all fuels such as pump fuel, all types of race fuel and E85.Horsepower capabilities? This fuel pump can support over 750hp on E85 with just one single fuel pump.

Included with this Aeroflow Performance fuel pump are a new filter inlet sock, wiring pigtail, one small length of rubber hose (submersible in all fuel types), two clamps to suit rubber hose and two straight crimp connectors. Attached to the pump is a 9.6mm (3/8") barb.

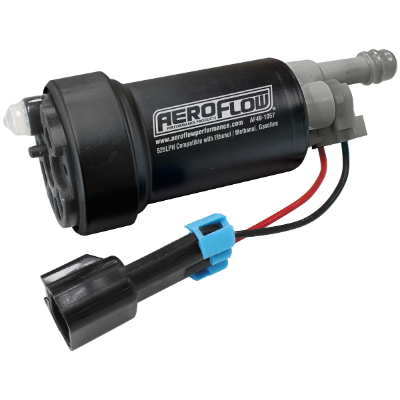

525lph

Introducing the new Aeroflow Performance 450 LPH Hi-flow in-tank efi fuel pump. This fuel pump is one of the highest flowing in-tank fuel pumps available on the market today. For such a compact and small design this fuel pump is capable of flowing 138.7 GPH (525 LPH) @ 29 Psi. With such a small and compact design it will fit in most O.E.M modern fuel tanks and surge tanks. (Please note that this is an aftermarket fuel pump, and some modifications may be required to get it to fit).

The internal design of this fuel pump is extremely quiet in operation compared to the older style fuel pumps. It is compatible with all fuels such as pump fuel, all types of race fuel and E85.Horsepower capabilities? This fuel pump can support over 750hp on E85 with just one single fuel pump.

Included with this Aeroflow Performance fuel pump are a new filter inlet sock, wiring pigtail, one small length of rubber hose (submersible in all fuel types), two clamps to suit rubber hose and two straight crimp connectors. Attached to the pump is a 9.6mm (3/8") barb.

WARNING This fuel pump requires a minimum 35-amp relay on each pump, along with suitable gauge wire and fuse/circuit breaker. Failure to do this will void all warranty.
